Auto COB Pick and Placer Machine Chip-On-Board placement machine

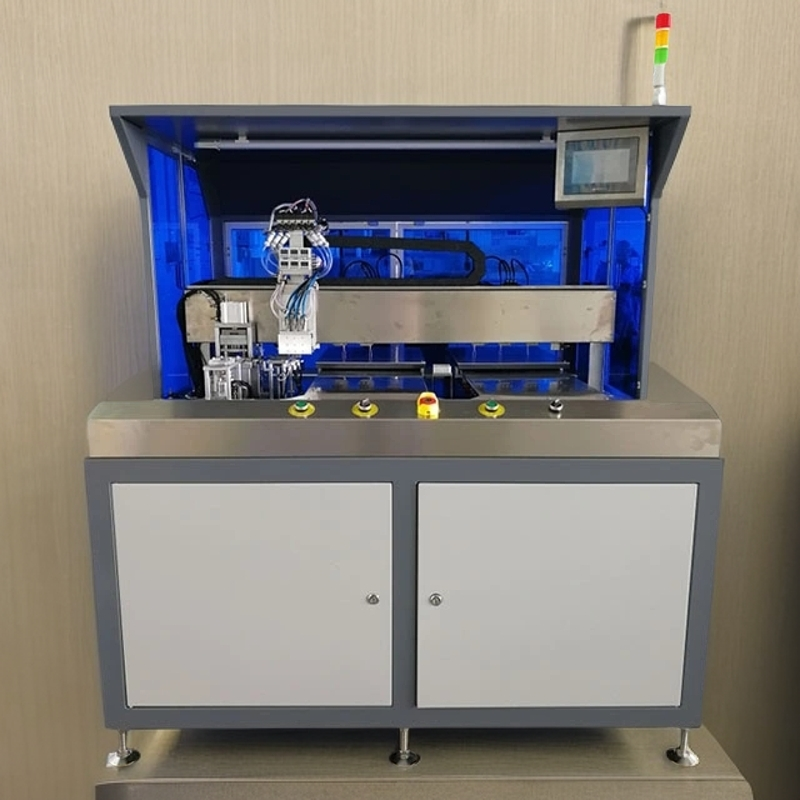

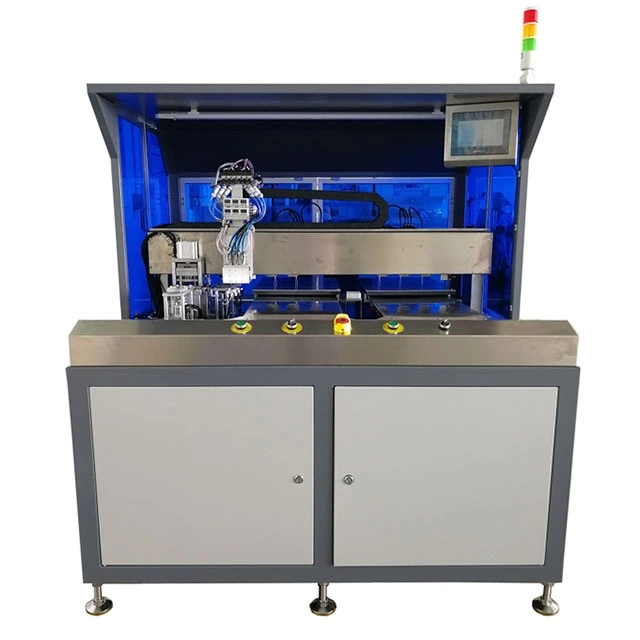

Auto COB Pick and Placer Machine APP-3000

Elevate your production line with the Auto COB Pick and Placer Machine APP-3000, a revolutionary solution tailored for the fast-paced world of electronic assembly. Engineered for precision and efficiency, this advanced machine automates the COB (Chip-On-Board) placement process, setting a new standard in manufacturing excellence.

Why Choose the APP-3000?

In today’s competitive electronics market, speed and accuracy are paramount. The APP-3000 not only meets these demands but exceeds them, allowing your business to thrive in an increasingly automated landscape.

Key Features and Benefits:

1. Fully Automated COB Handling:
   Experience hassle-free operation with our automated system designed specifically for COB placement. Simply load the roll tape, and the APP-3000 efficiently punches out chips from the tape, drastically reducing manual labor and minimizing the risk of errors.

2. Enhanced Productivity:
   The APP-3000 can pick 6 chips simultaneously, placing them precisely on designated sheets. This capability significantly boosts your assembly line's throughput, allowing for up to 4000 PCS/hour—perfect for high-demand production environments.

3. Versatile Layout Options:
   Adapt to your production needs with ease. The machine supports both 3x7 and 3x8 layouts, enabling quick changeovers between formats. With dual A and B platforms and a flexible 3-axis work mode (AY axis, BY axis, X axis), you can effortlessly adjust COB placing parameters to suit various projects.

4. Simultaneous Glue Dispensing:
   Maximize efficiency with 6 integrated glue dispensing units. The APP-3000 allows the glue dispensing and pick-and-place functions to operate concurrently, minimizing downtime and accelerating your production process.

5. High Precision and Accuracy:
   Built with an advanced X-Y double axis system powered by a servo motor, the APP-3000 ensures placing accuracy of up to ±0.05 mm. This level of precision is critical for maintaining the integrity and quality of your electronic assemblies, ensuring flawless operation every time.

6. Intelligent Monitoring System:
   Safety and reliability are paramount. The APP-3000 features an array of sensors that continuously monitor the machine's operational status. In case of any irregularities, the machine automatically halts and triggers an alarm, providing peace of mind during operation.

7. User-Friendly Interface:
   Designed for simplicity, the APP-3000’s intuitive interface allows operators to quickly learn and manage the machine. Adjust settings, monitor performance, and troubleshoot issues with ease, ensuring your team can focus on productivity rather than complications.

8. Compact and Efficient Design:
   Space-saving and efficient, the APP-3000 is designed to fit seamlessly into any production environment. Its footprint is optimized to provide maximum functionality without compromising valuable workspace.

9. Durable Construction for Long-Term Use:
   Built to withstand the rigors of industrial environments, the APP-3000's robust design guarantees longevity and reliability, making it a wise investment for your manufacturing needs.

Technical Specifications:

• Power Source: AC 220V/50 Hz
• Power Consumption: Approximately 3.0 KW
• Air Pressure: 6 kg/cm² (dry, no water)
• Air Consumption: Approximately 30 L/min
• Dimensions: L1530 × W1460 × H1730 mm
• Weight: Approximately 950 kg
• Capacity: Up to 4000 PCS/hour
• Control Method: PLC Program + Servo System
• Operator Requirement: 1 Person
• Material Compatibility: Chips in tape format; compatible with PVC, ABS, and PETG sheets featuring chip holes.
• Position Accuracy: ±0.05 mm

Conclusion

The Auto COB Pick and Placer Machine APP-3000 is more than just a machine; it’s a transformative tool that enhances your manufacturing process from start to finish. With its unparalleled speed, accuracy, and innovative features, the APP-3000 empowers your business to stay ahead of the competition. Upgrade your production capabilities and embrace the future of electronic assembly with the APP-3000—where efficiency meets excellence. Discover the difference today!
