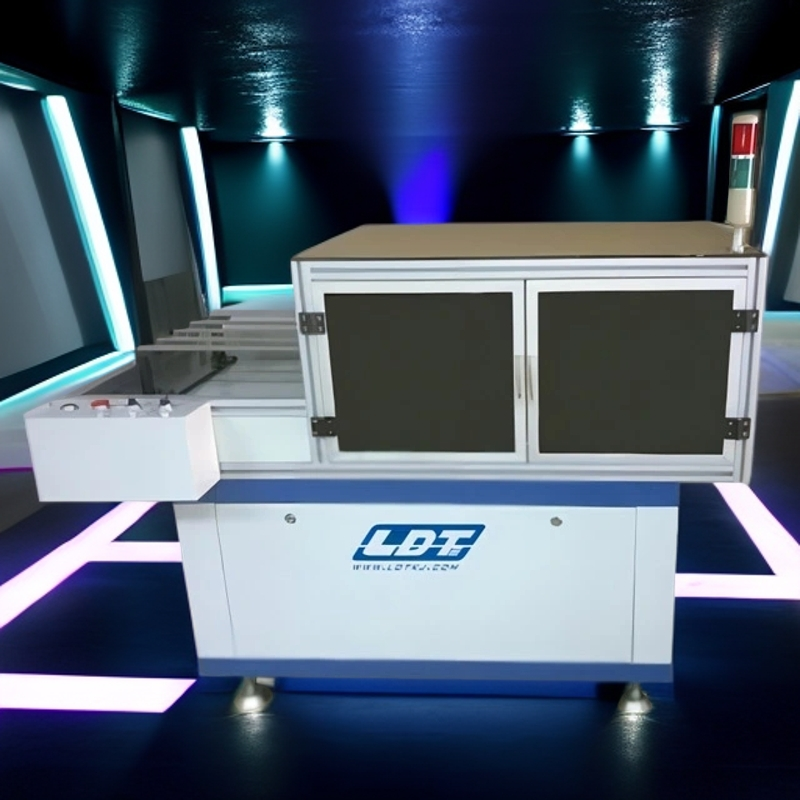

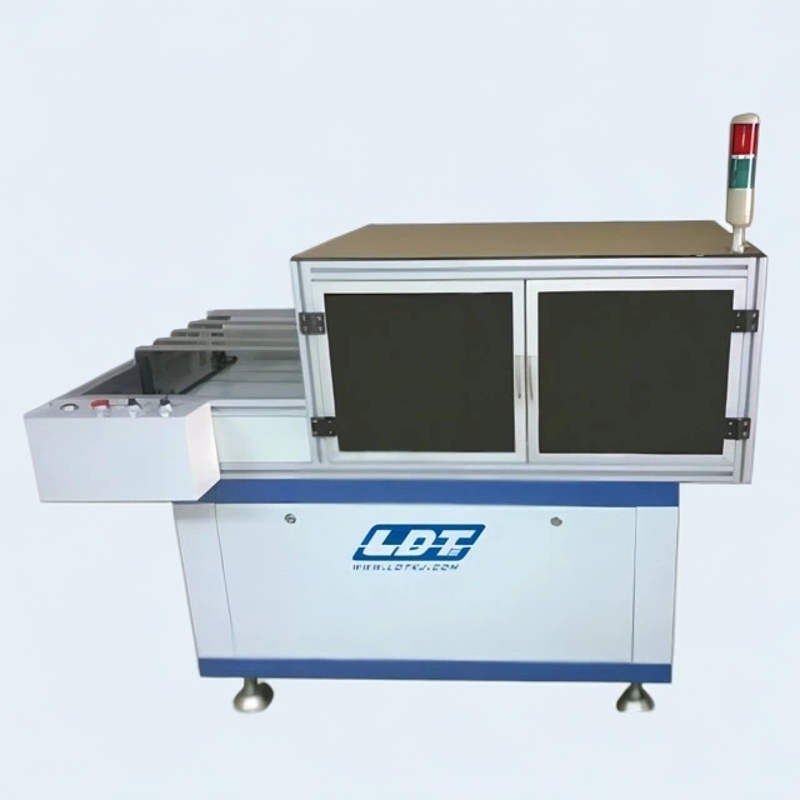

Auto Hole Punching Machine

Unlock the potential of your production line with the Auto Hole Punching Machine—a cutting-edge solution designed for precision and efficiency in chip hole punching on sheets. This machine seamlessly integrates advanced technology with user-friendly features, ensuring exceptional performance and versatility for various manufacturing needs.

Why Choose the Auto Hole Punching Machine?

In an era where precision and speed are crucial, the Auto Hole Punching Machine stands out as a reliable ally in enhancing your operational capabilities. Whether you're working with PVC, PET, or other materials, this machine guarantees consistent results that meet the highest standards of quality.

Comprehensive Features:

  1. Precision Punching Technology:
    Designed specifically for chip hole punching, the Auto Hole Punching Machine delivers precise, clean cuts on various sheet materials. This ensures optimal fit and function for electronic components, enhancing the overall quality of your products.

  2. Intuitive Touch Screen Control:
    Featuring a state-of-the-art touch screen interface, the machine allows for straightforward operation. Operators can easily navigate menus, adjust settings, and monitor performance in real time. This user-friendly design minimizes the learning curve, enabling quick training and seamless integration into your workflow.

  3. Versatile Punching Sizes:
    Equipped with double cylinder punching pins, the machine offers the flexibility to switch between different punching sizes with a simple touch on the screen. This adaptability is perfect for varying project requirements, ensuring that you can meet diverse customer demands without needing multiple machines.

  4. High-Precision Servo Motor Drive:
    The machine’s servo motor drives an imported ball-screw system, ensuring high precision in both positioning and feeding. Each punching point can be finely adjusted to achieve exact specifications, making it ideal for applications where precision is non-negotiable.

  5. Flexible Feeding and Punching Options:
    Choose from various feeding and punching configurations, including three-mold, four-mold, and five-mold setups. This flexibility allows you to customize your production line based on the specific requirements of each job, optimizing both speed and efficiency.

  6. Reliable INLAY Sheet Handling:
    The servo system ensures the accurate and reliable feeding, collecting, and punching of INLAY sheets. This reliability reduces the risk of errors, allowing for a smoother production process and increasing overall output.

  7. Customizable Speed and Positioning:
    The feeding speed and chip hole positions are fully adjustable through the touch screen, enabling you to fine-tune operations to meet varying production demands. This adaptability enhances efficiency, allowing for rapid shifts in production focus without downtime.

  8. Dual Punching Capability:
    The machine can accommodate two different punching sizes for the same type of chip, providing the versatility needed to handle a variety of components without compromising performance.

  9. Robust Construction for Durability:
    Built with high-quality materials and components, the Auto Hole Punching Machine is designed for longevity and reliability. Its robust construction ensures that it can withstand the rigors of daily use in busy manufacturing environments.

  10. Efficient Maintenance:
    The design of the machine facilitates easy maintenance, with accessible components that simplify routine checks and repairs. This minimizes downtime and helps keep your production line running smoothly.

Technical Specifications:

  • Power Source: AC 220V 50/60 Hz, 20A
  • Power Consumption: 0.6 KW
  • Compressed Air Requirement: 6 kg/cm²
  • Air Consumption: 20 L/min
  • Weight: Approximately 300 kg
  • Speed: Up to 450 sheets per hour
  • Dimensions: L1650 mm × W700 mm × H1500 mm
  • Control Method: Servo positioning + PLC
  • Operator Requirement: 1 Person
  • Material Specifications: Suitable for 0.2–0.4 mm PVC, PET, and other compatible materials

Conclusion

The Auto Hole Punching Machine is more than just a piece of equipment; it’s a transformative tool designed to enhance the efficiency and precision of your manufacturing process. With its combination of advanced technology, user-friendly operation, and robust performance, this machine is perfect for businesses looking to improve their production capabilities.

Embrace the future of manufacturing with the Auto Hole Punching Machine—where speed meets accuracy, and quality is always guaranteed. Contact us today to learn how this innovative solution can elevate your production line and help you stay competitive in the ever-evolving market!
