Model：LDT-FGF-5000

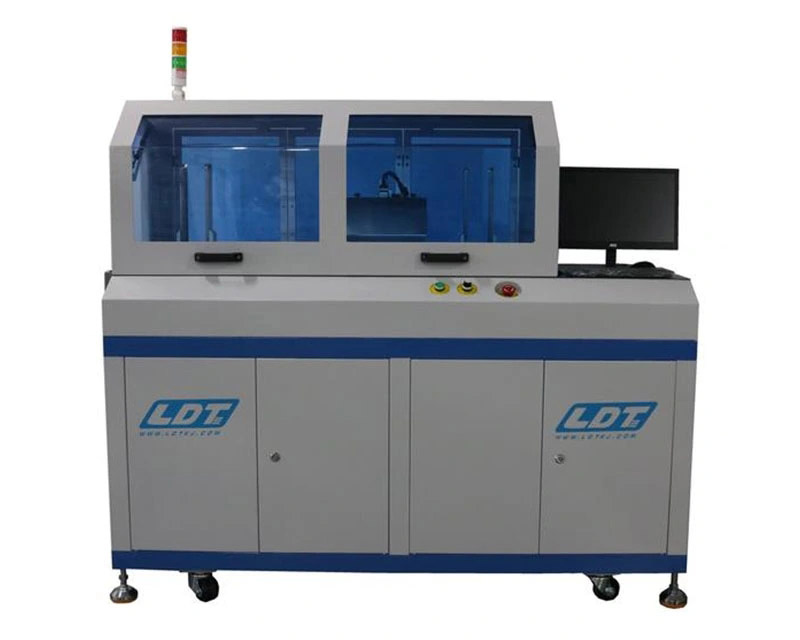

Contactless Card Personalization Issuing Machine LDT-FGF-5000

Features：

1. This machine is used for writing personalized data into contactless IC cards, it can also be used in inspection process.

2. The machine runs stable, quick and accurate. For small data production demand of IC card, it would be much more cost effective.

3. It not only has the function of personalized card issuing, but also has the inspection function, and is suitable for all contactless cards (including CPU cards and Dual interface cards).

4. Controlled by PC + PLC, makes sure the machine stably and easy to use.

5. Adopting OCR inspection and identifying the card number, make sure the card number is accurate and efficient.

6. The card feeding system adopt single suction card issuing method, it makes the feeding and receiving of cards more simple and humanized. So that the surface of is better protected and can not be scratched.

7. Tailor-made is acceptable, easy to add or remove special functions.

Machine Spec：

1 Dimension：L2400×W680×H1500 mm.

2 Weight：Around300 Kg.

3 Power Source: AC220V 50/60 Hz.

4 Power: Around 1KW.

5 Control Method：Windows  XP.

6 Operating and Inspection Speed: 5000 Sheets/hour (Depends on the sheet size).

7 Data Entry:3500 Sheets/hour

8 Number of operations：1
