Model:LDT－MZ－4500

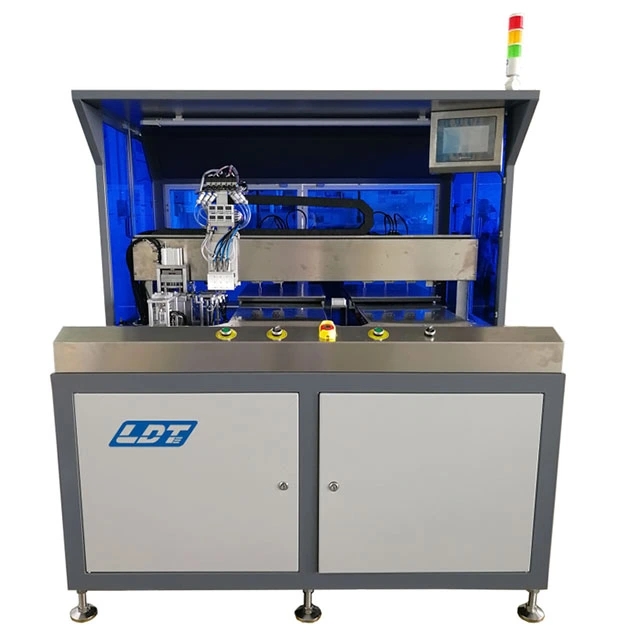

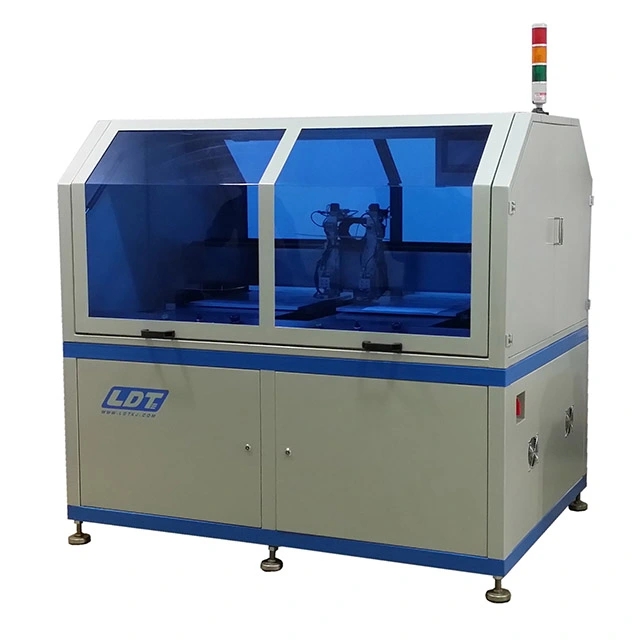

Auto COB Pick and Placer

Overview

The Auto COB Pick and Placer is an advanced automated machine designed for the contactless card and smart card industry. It is specifically engineered to automatically place chips onto inlay sheets after the antenna embedding process. As demand for RFID and contactless cards surges, manufacturers need reliable, efficient, and cost-effective equipment to keep up with production requirements. This machine offers a perfect solution for high-precision chip placement, ensuring a streamlined production process.

With servo motor control and PLC for optimized functionality, the Auto COB Pick and Placer simplifies the chip placement process, reducing labor costs, improving accuracy, and increasing production speed.

Key Features

• High-Precision Vibrating Trays
  The machine utilizes high-accuracy vibrating trays, ensuring that the chips are in the exact position for placement, minimizing errors and improving the quality of the final product.

• Servo Motor Control
  Servo motors control the chip placement with high precision, offering accuracy up to ±0.05mm. The system can store multiple programs for different sheet sizes, making it adaptable to various production requirements.

• PLC Control with Touch Screen Interface
  The PLC control system, combined with a touchscreen interface, provides intuitive and easy operation. It simplifies the setup process and allows for quick adjustments, making the machine user-friendly and highly efficient.

• Double Vibrating Trays and Working Tables
  Featuring double vibrating trays and dual work tables, the machine increases productivity by enabling simultaneous work on both sides, or it can operate with a single side for more flexibility.

• Easy Setup and Maintenance
  Designed for easy loading of plastic sheets and simple adjustments, the machine also boasts straightforward maintenance, ensuring minimal downtime and maximizing operational efficiency.

• Stable and Reliable Operation
  The machine operates stably, with well-distributed chip placement, ensuring high production quality and low defect rates.

Machine Specifications

Applications

• Contactless Card Production
  Perfect for contactless and RFID card manufacturers, this machine streamlines chip placement after antenna embedding, ensuring the accurate positioning of chips for cards used in payments, identification, and access control.

• Smart Card Manufacturing
  Ideal for the production of smart cards for various applications, including healthcare, public transportation, and security, where precise chip placement is crucial.

• Mass Production of Inlay Sheets
  The Auto COB Pick and Placer is built for high-speed, high-volume production, supporting 4500 cards per hour, making it ideal for manufacturers with large production runs.

• High-Precision Chip Placement
  Whether for contactless cards, RFID tags, or other applications, the machine ensures the chip is placed exactly where needed with minimal margin of error, improving both efficiency and product quality.

Why Choose the Auto COB Pick and Placer?

• Precision and Accuracy:
  The machine’s servo motor system ensures ±0.05mm precision, allowing for the most accurate chip placement in the industry. This minimizes defects and improves product quality.

• Increased Production Speed:
  Capable of handling up to 4,500 cards per hour, the Auto COB Pick and Placer dramatically increases the speed of your production line, making it ideal for high-volume manufacturing.

• Dual Working Mode for Flexibility:
  With double vibrating trays and dual working tables, this machine provides flexibility to operate in single or double modes, allowing you to adapt to various production demands.

• Cost-Effective Automation:
  By automating the chip placement process, this machine reduces labor costs, increases efficiency, and ensures consistent, high-quality results with minimal manual intervention.

• User-Friendly Interface:
  With a PLC control system and touchscreen interface, operators can quickly learn how to use the machine, make adjustments on the fly, and easily troubleshoot any issues.

• Durable and Reliable:
  Designed for long-term operation, the Auto COB Pick and Placer is built with durable components to ensure consistent performance and longevity, making it a valuable investment for any card manufacturer.
