Model:LDT-TXZ-2600

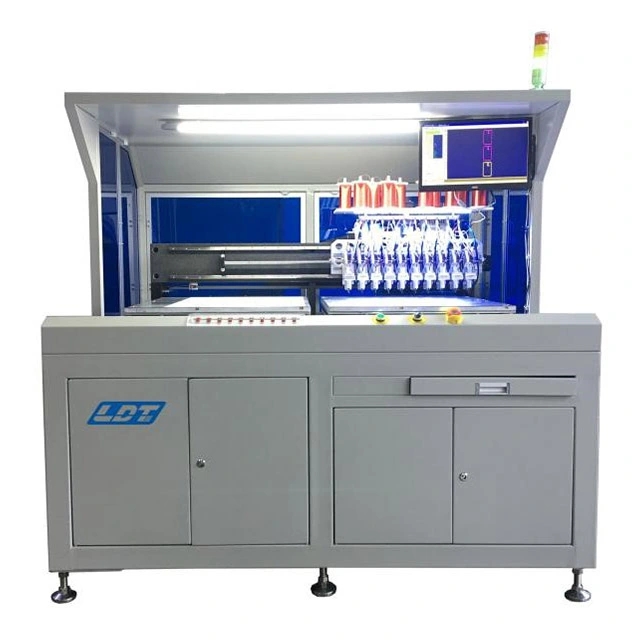

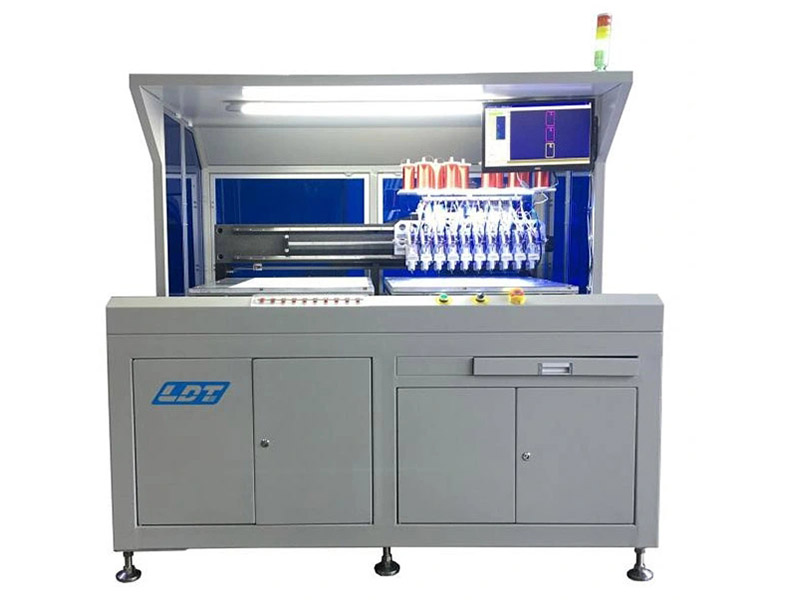

Auto Antenna Embedding Machine

Overview

The Auto Antenna Embedding Machine is an advanced automated solution designed to embed antennas onto inlay sheets, a key component in the production of contactless cards, RFID cards, and smart cards. With its cutting-edge features like PC control, ultrasonic embedding technology, and dual vacuum platens, this machine guarantees high precision, efficiency, and flexibility. It is ideal for high-volume production environments where flexibility and speed are essential.

Equipped with a user-friendly wide LCD screen and a biaxial servo system, the machine enables precise programming and effortless operation. It ensures stable performance and smooth operation, even when working with different antenna shapes and layouts, providing manufacturers with a versatile and reliable tool for modern card production.

Key Features

• High-Precision Antenna Embedding
  The machine’s vacuum aspirating platform firmly holds materials in place during the antenna embedding process, ensuring accuracy and smoothness, and preventing material displacement.

• Advanced Ultrasonic Embedding Technology
  The ultrasonic embedding system guarantees a consistent and high-quality antenna attachment to the inlay sheet, even for complex or delicate antenna structures.

• Flexible Sheet Layout Compatibility
  Designed to handle various inlay sheet layouts (such as 3×8, 4×8, 5×5), the machine can be easily adapted to different production requirements without the need for additional tooling.

• PC Control with Professional Drawing Software
  The machine uses PC control, allowing operators to design and program the antenna embedding path with professional PC drawing software. This makes it easy to adapt to different antenna geometries and layouts, significantly simplifying the process for changing configurations.

• Dual Vacuum Working Platens for Continuous Production
  With two vacuum platens, the machine can maintain continuous operation while switching materials without stopping, improving production uptime and efficiency.

• Customizable and Intuitive
  The machine can be tailored to accommodate various antenna shapes and sizes, and the control interface allows for easy adjustments. It’s ideal for both small batch production and high-volume runs.

• High-Speed Embedding
  Capable of embedding up to 400 antennas per hour, this machine significantly boosts throughput, helping manufacturers meet the demands of large-scale production.

Machine Specifications

Applications

• Contactless Card Manufacturing
  Perfect for embedding antennas in contactless cards used in payments, ID verification, and access control.

• RFID Card Production
  Ideal for the production of RFID tags and cards used in logistics, security, and asset tracking.

• Smart Card Production
  Excellent for embedding antennas in smart cards used for various applications, such as healthcare, finance, and public transportation.

• Antenna Embedding for Inlays
  Suitable for any application requiring the precise and automated embedding of antennas onto plastic inlay sheets, enhancing the reliability of the final product.

Why Choose the Auto Antenna Embedding Machine?

• Superior Quality and Precision:
  With ultrasonic embedding technology and a vacuum aspirating platform, this machine ensures that each antenna is embedded with maximum precision, maintaining high-quality standards for each unit produced.

• Speed and Efficiency:
  Capable of embedding 400 antennas per hour, it significantly boosts production efficiency, allowing manufacturers to meet the increasing demand for contactless and RFID cards.

• Versatility and Customization:
  The PC control system with professional drawing software allows for easy customization of antenna layouts, making it adaptable for various production requirements. The machine is compatible with multiple sheet layouts, offering flexibility in card production.

• Reduced Downtime:
  The dual vacuum platens ensure that materials can be changed quickly without stopping the machine, resulting in less downtime and improved throughput.

• User-Friendly Operation:
  The wide LCD touch screen provides an intuitive interface, allowing operators to easily control the machine, adjust parameters, and monitor production.

• Built for High Volume Production:
  Designed for high-volume production, this machine delivers consistent performance, meeting the needs of large-scale manufacturers.

Optimize Your Production Line with the Auto Antenna Embedding Machine

The Auto Antenna Embedding Machine offers a comprehensive, automated solution for embedding antennas onto inlay sheets. Its advanced ultrasonic technology, flexible PC control, and high-speed operation make it a critical asset for any contactless card or RFID card manufacturing process. Whether you are producing small or large batches, this machine maximizes production efficiency, reduces labor costs, and ensures the consistent quality of every card.
