Model：LDT-GM-600

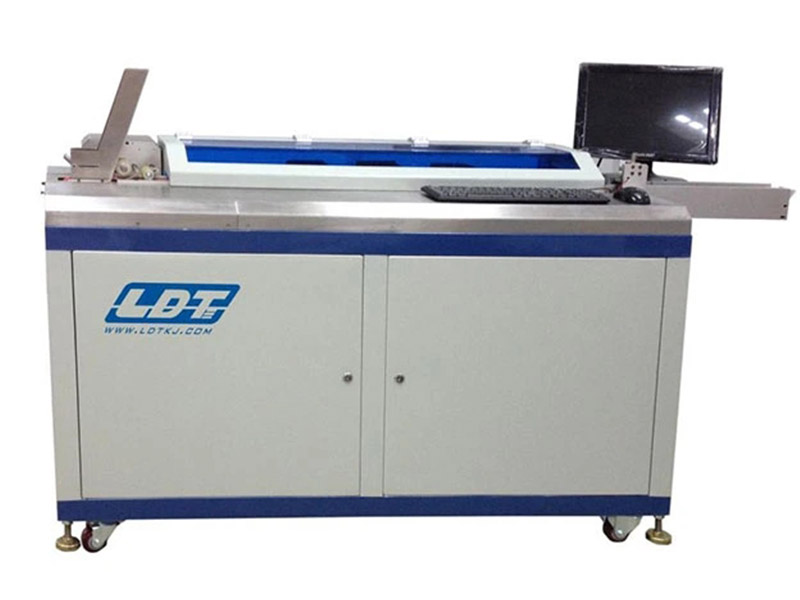

Contactelss Contactless Card Product Testing Machine LDT-GM-600

Feature :

1.The machine is designed for testing the contactless card electric performance at the final process of contactless card production.

2.The whole machine adopts PLC control, easy to operate and convenient to adjust the parameters.

3.Servo motor control the convey belt feeding the card to testing position.

4.The testing software is compatible with many communication protocol formats.

5.Data entry ,read and write functions can be added.

Machine Spec:

1.Dimension:L2000*W520*H1300mm

2.Weight:About 150 kg

3.Power supply:AC220V 50/60HZ

4.Power:1KW

5.Speed:About5000pcs/h

6.Working Temperature:-10~50℃

7.Working Humidity:10~90%RH

8.Control Method:WindowsXP (Chinese and English Interface)

9.Operator:1 person
